Locky ransomware is in the news again with variants using different extensions for encrypted files. A couple of months ago, we blogged about the Zepto variant of Locky ransomware which used the .ZEPTO extension for encrypted files. The blog also highlighted Zepto’s executable (.EXE) payload execution with pre-defined parameters. Later, we highlight in this blog another Zepto variant that executes its main payload via DLL rather than EXE. As we continue to monitor Locky ransomware’s evolution, Netskope Threat Research Labs took a deep dive into two new variants of Locky ransomware, this time using .AESIR and .ZZZZZ extensions for encrypted files. The variants also made a few changes in the malware’s payload execution.
AESIR Variant
Netskope Threat Protection detects the AESIR variant (MD5: 3bd53e3f19c9e60d7d659134f7b6bd8b) as “Backdoor.Downloadr.ZW”. The detected ZIP file contains a file named “63194603-AP1339.vbs” which is shown in an obfuscated format in Figure 1.
Figure 1: Obfuscated malicious VBScript file code snippet
As shown above, the script has a couple of variables declared with the string “MicrosoftWindowsemployee” prepended to the names. At line number 43 in Figure 1, we find the array variable “MicrosoftWindowsemployeePLdunay” which is generated using the split method on variable “MicrosoftWindowsemployee2” using “SERPiMOLOT” as a string constant separator. The variable “MicrosoftWindowsemployee2” contains some valid readable strings separated by this hard-coded string constant. After evaluation, the new array variable will contain important strings, as shown in Figure 2.
Figure 2: Array variable after evaluation contains valid strings
The array variable “MicrosoftWindowsemployeePLdunay” contains 13 elements which are referenced by the script wherever applicable. Next comes another array variable, “mambaFRUTISuArrr,” as shown in Figure 3.
Figure 3: Array variable containing compromised URLs split by “+”
The array variable, “mambaFRUTISuArrr,” as shown in Figure 3 is split using the “+” character which, when evaluated, will yield the Locky executable download URLs, as shown in Figure 4.
Figure 4: Array variable after evaluation contains URLs to download malicious payload
The VBS script will download the Locky executable from any of URLs found, as shown in Figure 5.
Figure 5: VBS script downloads payload and saves under %TEMP% folder
As shown in Figure 5 above, the script iterates through the list of URLs variable (evaluated as shown in Figure 4 earlier) to download malicious payload and saves it under %TEMP% directory if found. The payload is in an encrypted format. The encrypted payload is saved as “wVEQotncpg.55”. The downloaded payload uses the “.55” extension for its filename rather than the .EXE or .DLL extensions as seen in previous variants. The payload will then be decrypted using the function name “encryptor” before the main execution, as shown in Figure 6.
Figure 6: Malicious encrypted payload will be decrypted using the cipher key
As shown above, the script first converts the hard-coded string key “M7meLUMMVmEaR2eHds9aMc04MzRpdZmV” into ASCII code as a cypher array and then passes this array to a function, “encryptor,” along with an input and output file name, which decrypts its main payload, as shown in Figure 7.
Figure 7: Decryption function routine for payload using the string key
The encrypted payload is XORed with the hard-coded cipher key “M7meLUMMVmEaR2eHds9aMc04MzRpdZmV” as per the instructions on line 99 in Figure 7. Typically, a similar inference can be made without reverse engineering the code and by observing the repetition of the cipher key above in the encrypted payload when opened in a hex editor, as shown in Figure 8.
Figure 8: Encrypted binary payload XORed with string key

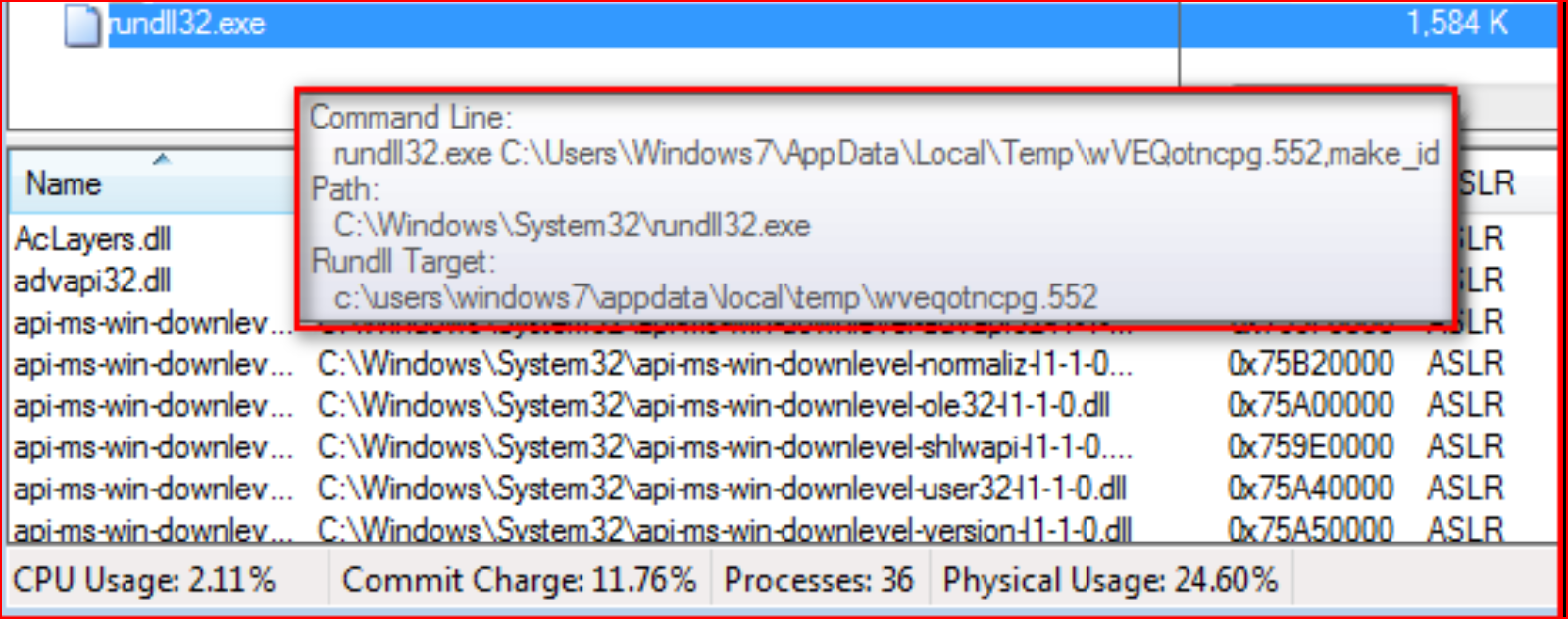

While decrypting this payload, this variant saves the payload with the “.552” extension in %TEMP% folder by appending “2” to its original file name. This payload is in DLL file format but doesn’t use the .DLL extension. Also, it is executed using “
